Enabling Remote Desktop Access via Group Policy in a Windows Domain

Overview

This lab demonstrates how to enable Remote Desktop Protocol (RDP) access on a Windows Client machine using Group Policy in an Active Directory environment. The process involves creating and applying a GPO to allow remote desktop connections.

Skills Demonstrated
Creating and configuring a Remote Desktop GPO
Enabling RDP access via Administrative Templates in Group Policy
Organizing client machines into Active Directory Organizational Units
Linking GPOs to specific OUs for targeted policy deployment
Using gpupdate /force and gpresult /r to verify policy application
Confirming enforcement via Windows system settings feedback
Tools Used
Windows Server (Active Directory Domain Services)
Windows 10
Group Policy Management Console (gpmc.msc)
Group Policy Management Editor
Active Directory Users and Computers (dsa.msc)
Command Prompt (gpupdate, gpresult)
Remote Desktop Settings (Windows Settings Panel)

1. Environment Setup

  • Installed a Windows Server VM
  • Created a local Administrator account
  • Installed Active Directory Domain Services (AD DS)
  • Promoted the server to a Domain Controller with the domain name: lab.local
  • Created a domain user:
    • Name: John Doe
    • Logon Name: j.doe

2. Create Organizational Unit and Add Client

  • Created a new Organizational Unit: LabComputers
  • Added the Windows 10 Client VM to this OU

3. Create and Configure RDP GPO

  • Created a new Group Policy Object: Remote Desktop Policy

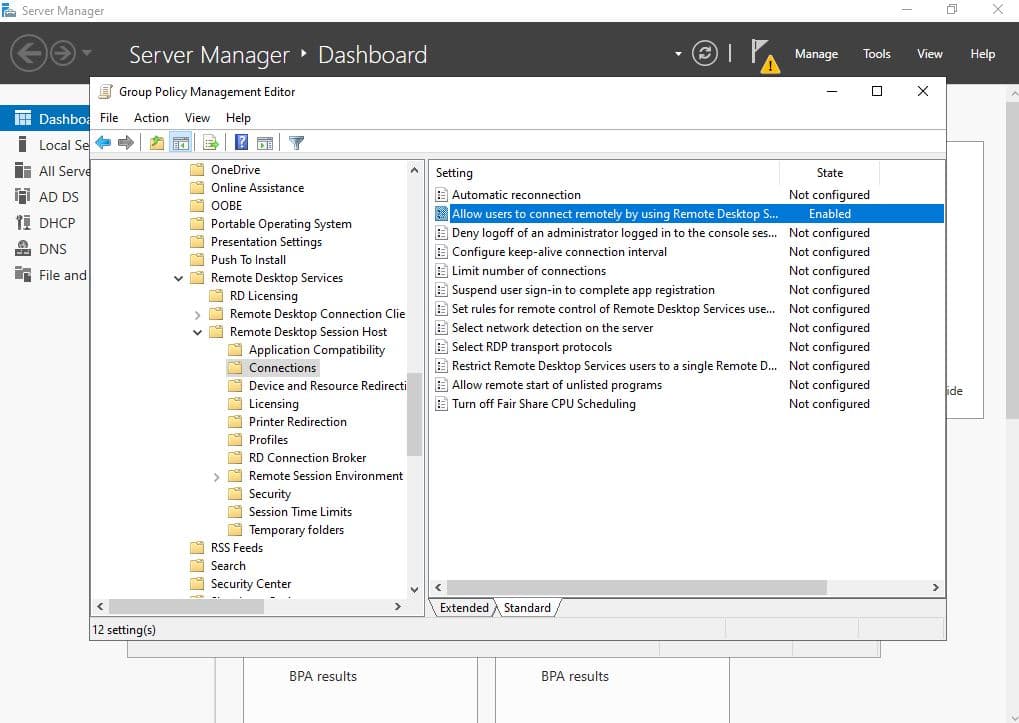

  • Navigated to: Computer Configuration > Administrative Templates > Windows Components > Remote Desktop Services > Remote Desktop Session Host > Connections
  • Enabled the policy: "Allow users to connect remotely using Remote Desktop Services"

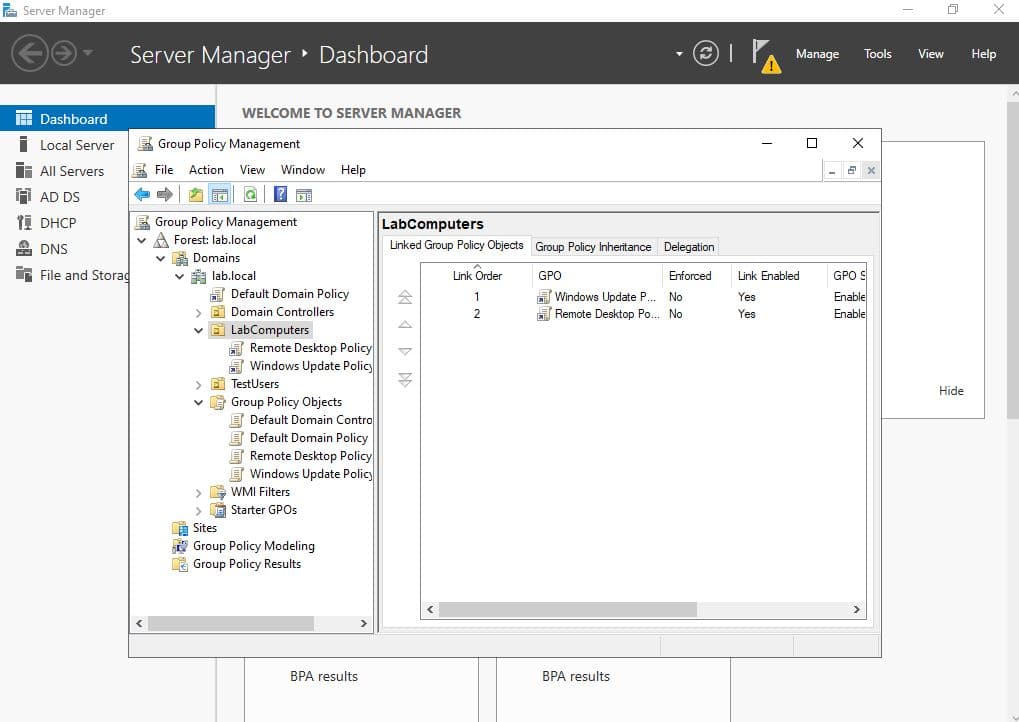

  • Linked the Remote Desktop Policy GPO to the LabComputers OU
  • On the Windows 10 Client, ran the following commands:
gpupdate /force
gpresult /r
  • Verified that the Remote Desktop Policy GPO was applied

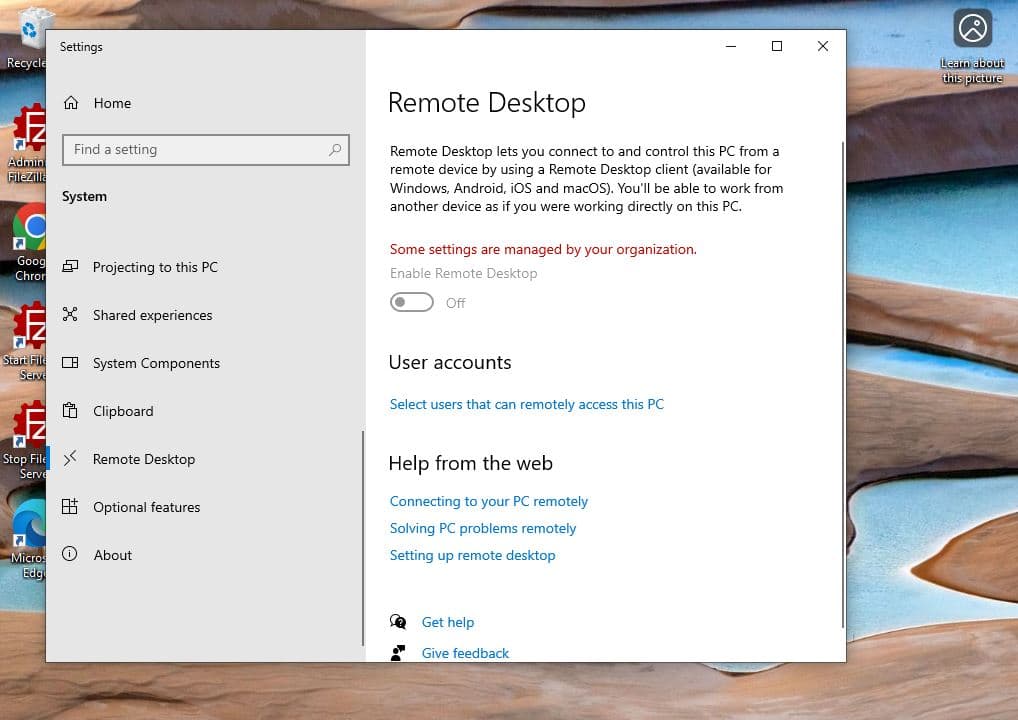

  • Confirmed success by checking Remote Desktop settings:
    A message appears — "Some settings are managed by your organization"
